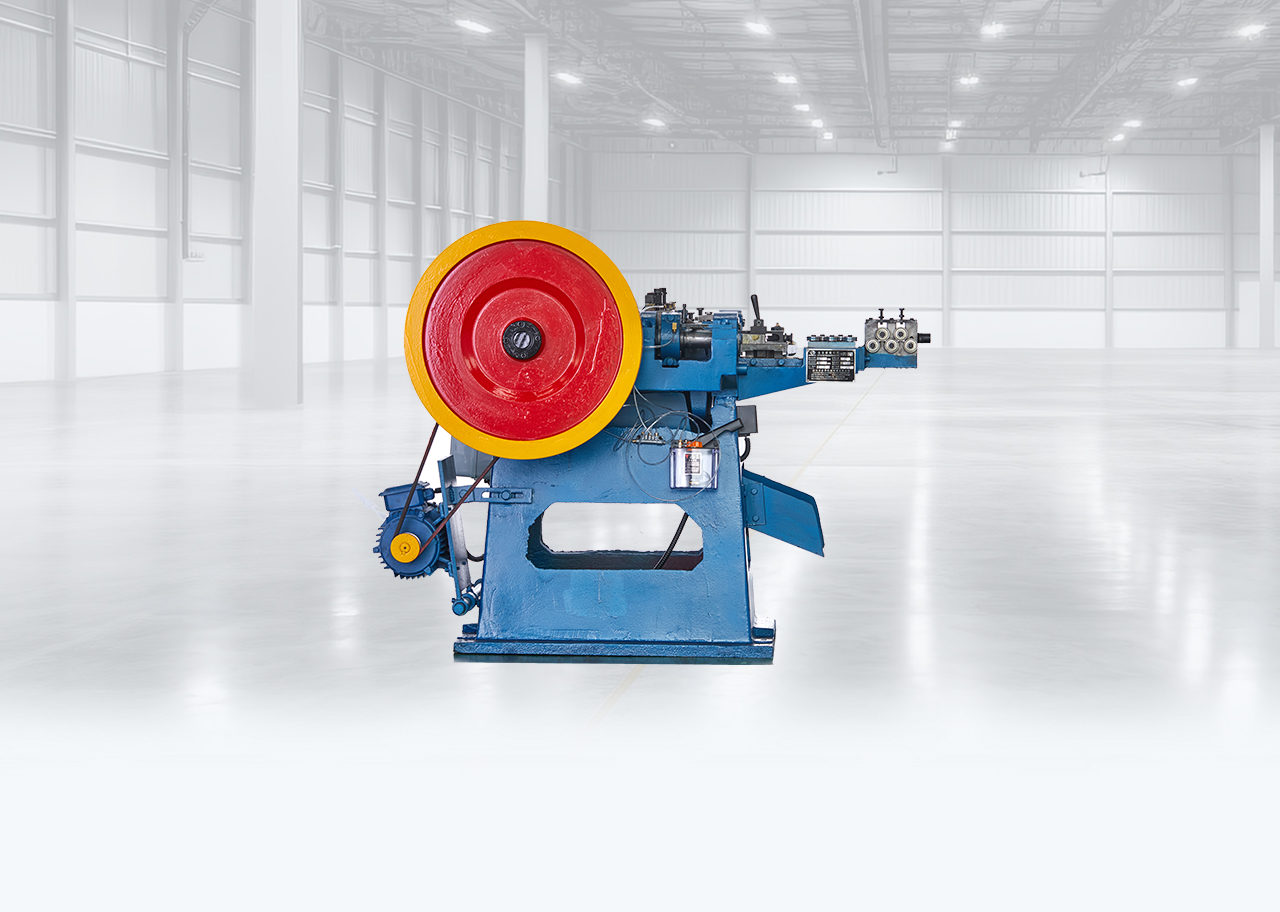

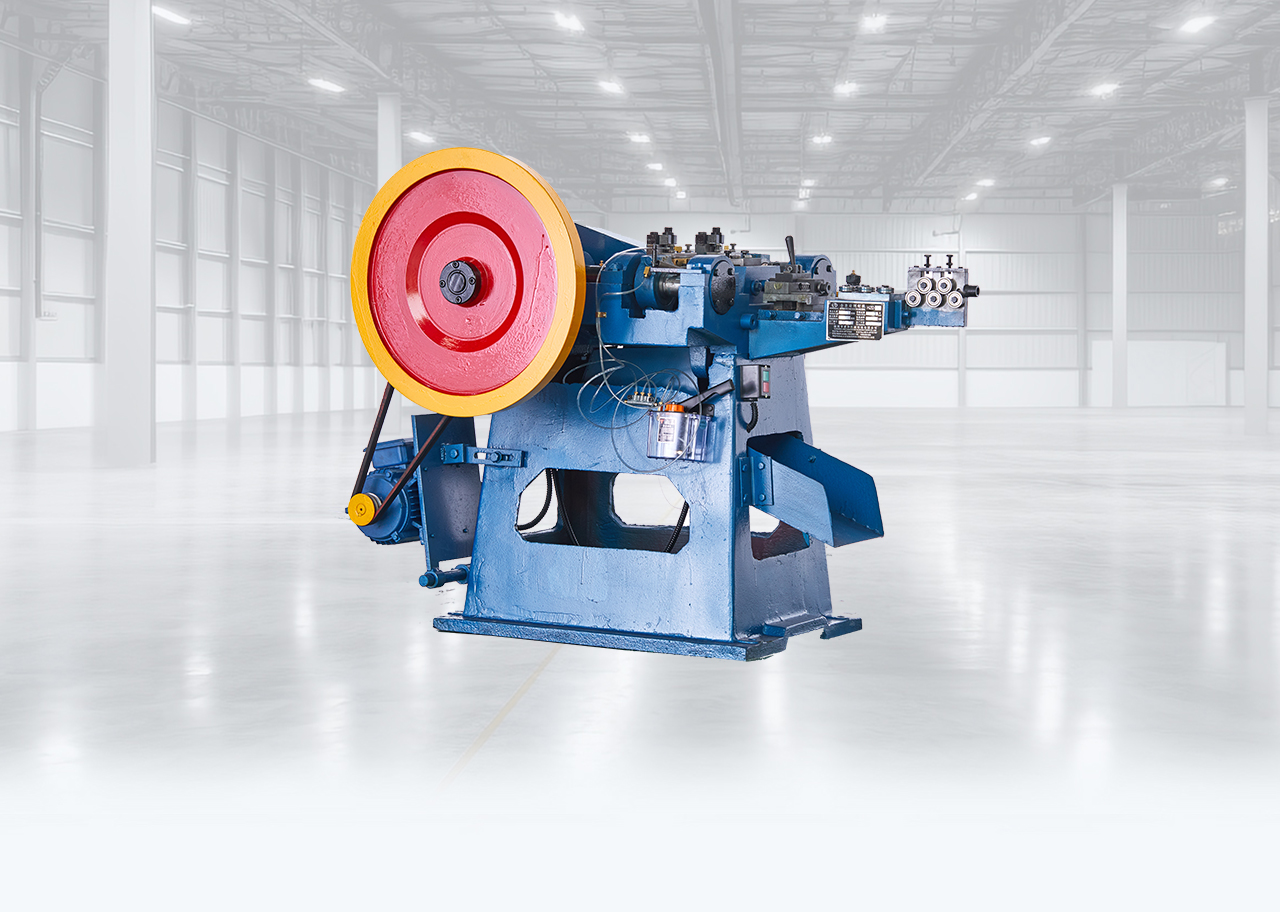

YZDQ-SM100 Double Cap Nail Machine

YZDQ-SM100 Double Cap Nail Machine

YZDQ-SM100  double-cap nail machine is a special nail making equipment that specializes in the production of double-head nails (double-cap nails, door nails, decorative nails). It adopts precision cold heading technology and can complete the nail body forming and double-end cap processing at one time. This equipment has the characteristics of high efficiency, high precision, low energy consumption, etc., and is particularly suitable for high-end furniture, door and window manufacturing, decorative hardware and other industries.

Datasheet:

Nail Types
Advantages of SM100
  • High-precision bearing transmission

  • Modular stamping design

  • High-compatibility nail mold base

  • Precision wire feeding system

  • Intelligent lubrication guarantee

  • Power optimization design

  • High-strength material process

  • Low noise technology

Parameter of SM100
  • Maximum diameter of nails: 4.5mm

  • Minimum diameter of nails: 2.8mm

  • Maximum length of nails: 100mm

  • Minimum length of nails: 50mm

  • Speed: 150pcs/min

  • Power: 4kw

  • Size: 2350*1512*1500mm

  • Weight: 1800KG

A Classic Design for High-Quality Nail Manufacturing

Special structural processing capabilities, can produce flat caps/round caps/special-shaped cap heads, support difficult-to-process materials such as stainless steel/copper, and the nail body can be embossed.

Significant economic benefits, 20 times more efficient than traditional turning processes, material utilization rate of over 98%, energy consumption <0.1kW·h/1,000 pieces

Easy operation and maintenance, mold quick change system (completed within 10 minutes), centralized lubrication device, modular circuit design.
